Home / Compatible Devices / ID Tech VP3300

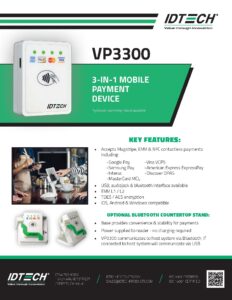

The VP3300, from ID Tech, is a compact (2.52 inches x 1.93 inches) all-in-one MagStripe, EMV contact and EMV contactless reader. It can connect via USB or Bluetooth. Similar to the Augusta reader, the VP3300 offers merchants with a cost-effective upgrade path to EMV from traditional magstripe readers.
The VP3300 is available from select distributors today that is EMV-ready.
Here’s what you’ll need to order:
All-in-One Chip/MSR Reader (Part #’s vary per processor; see chart below)
Processor-Specific E2E Key (See chart below)
The VP3300 can be ordered directly from the vendors below.
Via NETePay Hosted
Via NETePay Hosted
Via NETePay Hosted
Via NETePay Hosted
Via NETePay Hosted
NETePay
Via NETePay Hosted
NETePay
Via NETePay Hosted
NETePay
Via NETePay Hosted
Via NETePay Hosted
Via NETePay Hosted
Via NETePay Hosted
Via NETePay Hosted
Via NETePay Hosted
NETePay
Via NETePay Hosted
NETePay
| VP3300 BT | Recommended Firmware | Processor E2E Key | SecureDeviceID | |
|---|---|---|---|---|
| Encrypted (recommended) | Non-Encrypted | |||
| IDMR-BT93133P2 (black) IDMR-BT93133PW2 (white) | V1.10.035 | IDT-KEYINJ-287 | EMV_VP3300_DATACAP | N/A |
| VP3300 BT | Recommended Firmware | Processor E2E Key | SecureDeviceID | |
|---|---|---|---|---|
| Encrypted (recommended) | Non-Encrypted | |||
| IDMR-BT93133P2 (black) IDMR-BT93133PW2 (white) | V1.10.035 | IDT-KEYINJ-287 | IDTVP3300_DATACAP_E2E | N/A |
*Includes Datacap’s NETePay™, NETePay Hosted™, TranCloud™ and Tran™ Series products.
| Processor | VP3300 BT | Recommended Firmware | Processor E2E Key | SecureDeviceID | |
|---|---|---|---|---|---|
| Encrypted (recommended) | Non-Encrypted | ||||
| EVO | IDMR-BT93133P2 (black) IDMR-BT93133PW2 (white) | V1.10.035 | IDT-KEYINJ-343 | EMV_VP3300_EVO | N/A |
| First Data Rapid Connect | IDMR-BT93133P2 (black) IDMR-BT93133PW2 (white) | V1.10.035 | TransArmor E2E Key | EMV_VP3300_RAPIDCONNECT_E2E | N/A |
| Heartland | IDMR-BT93133AP2 (black) IDMR-BT93133APW2 (white) | V1.10.035 | C12012 | EMV_VP3300_HEARTLAND | N/A |
| TSYS* | IDMR-BT93133P2 (black) IDMR-BT93133PW2 (white) | V1.10.035 | N/A | N/A | EMV_VP3300_TSYS |
| Worldpay IP (Mercury) | IDMR-BT93133P2 (black) IDMR-BT93133PW2 (white) | V1.10.035 | IDT-KEYINJ-058 | EMV_VP3300_MERCURY | N/A |
| Processor | VP3300 BT | Recommended Firmware | Processor E2E Key | SecureDeviceID | |
|---|---|---|---|---|---|
| Encrypted (recommended) | Non-Encrypted | ||||
| EVO | IDMR-BT93133P2 (black) IDMR-BT93133PW2 (white) | V1.10.035 | IDT-KEYINJ-343 | IDTVP3300_EVO_E2E | IDTVP3300HID |
| First Data Rapid Connect | IDMR-BT93133P2 (black) IDMR-BT93133PW2 (white) | V1.10.035 | TransArmor E2E Key | IDTVP3300_RAPIDCONNECT_E2E | IDTVP3300HID |
| Heartland | IDMR-BT93133AP2 (black) IDMR-BT93133APW2 (white) | V1.10.035 | C12012 | IDTVP3300_HEARTLAND_E2E | IDTVP3300HID |
| TSYS* | IDMR-BT93133P2 (black) IDMR-BT93133PW2 (white) | V1.10.035 | N/A | N/A | IDTVP3300HID |
| Worldpay IP (Mercury) | IDMR-BT93133P2 (black) IDMR-BT93133PW2 (white) | V1.10.035 | IDT-KEYINJ-058 | IDTVP3300_MERCURY_E2E | IDTVP3300HID |
*Encryption available via NETePay Hosted
