Home / Compatible Devices / ID TECH Augusta

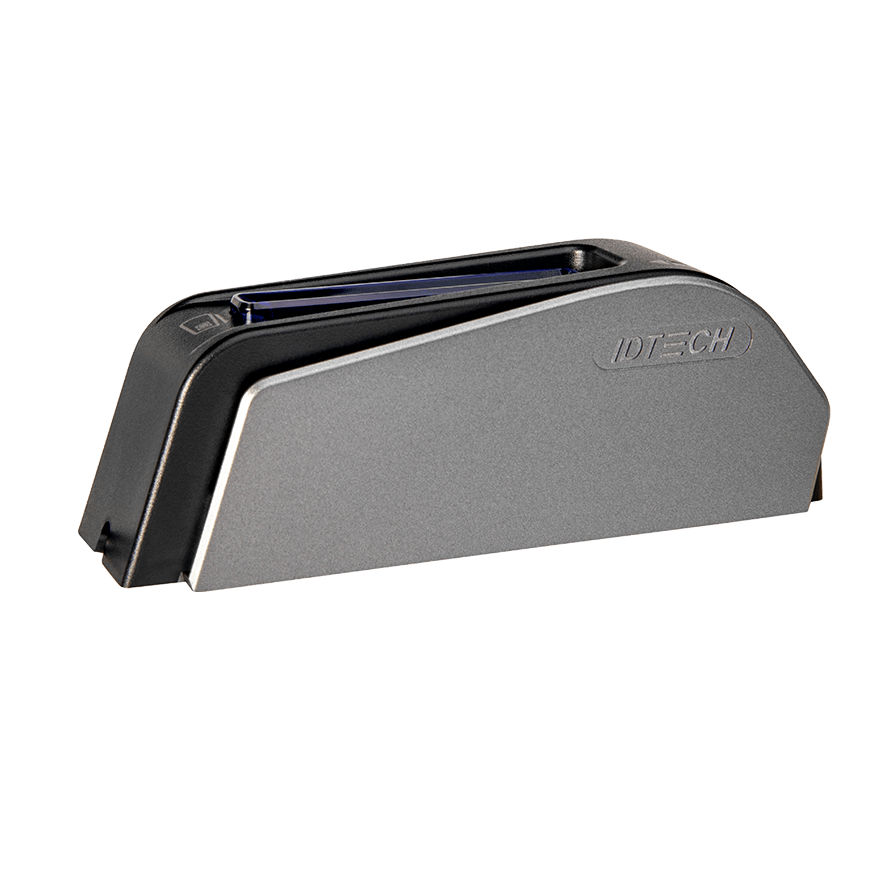

The Augusta card reader, from ID TECH, is a secure EMV chip and magnetic stripe reader that offers merchants a simple and cost-effective upgrade path to EMV from traditional desktop magnetic stripe readers. This reader provides superior reading performance while also encrypting sensitive magnetic stripe and EMV card data. Augusta readers can be mounted to existing POS workstations, reducing costly workstation upgrades. They connect via USB.
The Augusta is available from select distributors today that is EMV-ready.
Here’s what you’ll need to order:
All-in-One Chip/MSR Reader (Part #’s vary per processor; see chart below)
Processor-Specific E2E Key (see chart below)
The Augusta can be ordered directly from the vendors below.
*** For EVO, the ID TECH Augusta can only be sourced from Ingram Micro / TPG***
NETePay Hosted
NETePay
NETePay Hosted
NETePay
NETePay Hosted
NETePay
NETePay Hosted
NETePay
NETePay
NETePay Hosted
NETePay Hosted
NETePay
NETePay Hosted
NETePay
NETePay Hosted
NETePay
NETePay Hosted
NETePay
NETePay Hosted
NETePay
NETePay Hosted
NETePay
NETePay Hosted
NETePay
NETePay Hosted
NETePay
NETePay Hosted
NETePay
| MSR/Chip Reader | Recommended Firmware | Processor E2E Key | SecureDeviceID | |
|---|---|---|---|---|
| Encrypted (recommended) | Non-Encrypted | |||
| IDEM-251P | V1.03.015 | IDT-KEYINJ-287 | EMV_AUGUSTA_DATACAP | N/A |
| IDEM-841P (Augusta S) | V1.03.015 | IDT-KEYINJ-287 | EMV_AUGUSTA_SRED_DATACAP EMV_AUGUSTA_SRED_DATACAP_BLUEFIN | N/A |
| MSR/Chip Reader | Recommended Firmware | Processor E2E Key | SecureDeviceID | |
|---|---|---|---|---|
| Encrypted (recommended) | Non-Encrypted | |||
| IDEM-251P | V1.03.015 | IDT-KEYINJ-287 | IDTAUGUSTAHID_DATACAP_E2E | N/A |
| IDEM-841P (Augusta S) | V1.03.015 | IDT-KEYINJ-287 | IDTAUGUSTASREDHID_DATACAP_E2E IDTAUGUSTASREDHID_DATACAP_BLUEFIN | N/A |
*Includes Datacap’s NETePay™, NETePay Hosted™, TranCloud™ and Tran™ Series products.
| Processor | MSR/Chip Reader | Recommended Firmware | Processor E2E Key | SecureDeviceID | |
|---|---|---|---|---|---|
| Encrypted (recommended) | Non-Encrypted | ||||
| Heartland | IDEM-251AP | V1.03.015 | C12012 | EMV_AUGUSTA_HEARTLAND | N/A |
| IDEM-841AP (Augusta S) | V1.03.015 | C12012 | EMV_AUGUSTA_SRED_HEARTLAND | N/A | |
| First Data Rapid Connect | IDEM-251P | V1.03.015 | TransArmor E2E Key | EMV_AUGUSTA_RAPIDCONNECT_E2E | N/A |
| IDEM-841P (Augusta S) | V1.03.015 | TransArmor E2E Key | EMV_AUGUSTA_SRED_RAPIDCONNECT_E2E | N/A | |
| Worldpay IP (Mercury) | IDEM-251P-1M | V1.03.015 | IDT-KEYINJ-058 | EMV_AUGUSTA_MERCURY | N/A |
| IDEM-841P (Augusta S) | V1.03.015 | IDT-KEYINJ-058 | EMV_AUGUSTA_SRED_MERCURY | N/A | |
| EVO Snap | IDEM-251P | V1.03.015 | IDT-KEYINJ-343 | EMV_AUGUSTA_EVO | N/A |
| IDEM-841P (Augusta S) | V1.03.015 | IDT-KEYINJ-343 | EMV_AUGUSTA_SRED_HEVO | N/A | |
| TSYS | IDEM-251N | V1.03.015 | N/A | N/A | EMV_AUGUSTA_TSYS |
| Processor | MSR/Chip Reader | Recommended Firmware | Processor E2E Key | SecureDeviceID | |
|---|---|---|---|---|---|
| Encrypted (recommended) | Non-Encrypted | ||||
| Heartland | IDEM-251AP | V1.03.015 | C12012 | IDTAUGUSTAHID_HEARTLAND_E2E | IDTAUGUSTAHID |
| IDEM-841AP (Augusta S) | V1.03.015 | C12012 | IDTAUGUSTASREDHID_HEARTLAND_E2E | IDTAUGUSTAHID | |
| First Data Rapid Connect | IDEM-251P | V1.03.015 | TransArmor E2E Key | IDTAUGUSTAHID_RAPIDCONNECT_E2E | IDTAUGUSTAHID |
| IDEM-841P (Augusta S) | V1.03.015 | TransArmor E2E Key | IDTAUGUSTASREDHID_RAPIDCONNECT_E2E | IDTAUGUSTAHID | |
| Worldpay IP (Mercury) | IDEM-251P-1M | V1.03.015 | IDT-KEYINJ-058 | IDTAUGUSTAHID_MERCURY_E2E | IDTAUGUSTAHID |
| IDEM-841P (Augusta S) | V1.03.015 | IDT-KEYINJ-058 | IDTAUGUSTASREDHID_MERCURY_E2E | IDTAUGUSTAHID | |
| EVO Snap | IDEM-251P | V1.03.015 | IDT-KEYINJ-343 | IDTAUGUSTAHID_EVO_E2E | IDTAUGUSTAHID |
| IDEM-841P (Augusta S) | V1.03.015 | IDT-KEYINJ-343 | IDTAUGUSTASREDHID_EVO_E2E | IDTAUGUSTAHID | |
| TSYS | IDEM-251N | V1.03.015 | N/A | N/A | IDTAUGUSTAHID |
