Home / Compatible Devices / ID Tech VP8300

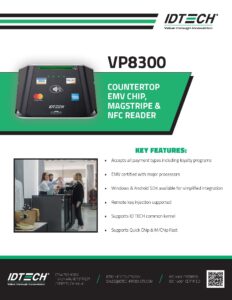

The VP8300, from ID Tech, is a secure EMV chip, magnetic stripe reader with contactless capabilities. It can connect via USB or HID.
The VP8300 is available from select distributors today that is EMV-ready.
Here’s what you’ll need to order:
All-in-One Chip/MSR Reader (Part #’s vary per processor; see chart below)
Processor-Specific E2E Key (See chart below)
The VP8300 can be ordered directly from the vendors below.
Via NETePay Hosted
Via NETePay Hosted
Via NETePay Hosted
Via NETePay Hosted
Via NETePay Hosted
NETePay
Via NETePay Hosted
NETePay
Via NETePay Hosted
NETePay
Via NETePay Hosted
Via NETePay Hosted
Via NETePay Hosted
Via NETePay Hosted
Via NETePay Hosted
Via NETePay Hosted
NETePay
Via NETePay Hosted
| VP8300 BT | Recommended Firmware | Processor E2E Key | SecureDeviceID | |
|---|---|---|---|---|
| Encrypted (recommended) | Non-Encrypted | |||
| IDV8-300P2 | V1.10.035 | IDT-KEYINJ-287 | EMV_VP8300_DATACAP | N/A |
| VP8300 BT | Recommended Firmware | Processor E2E Key | SecureDeviceID | |
|---|---|---|---|---|
| Encrypted (recommended) | Non-Encrypted | |||
| IDV8-300P2 | V1.10.035 | IDT-KEYINJ-287 | IDTVP8300_DATACAP_E2E | N/A |
*Includes Datacap’s NETePay™, NETePay Hosted™, TranCloud™ and Tran™ Series products.
| Processor | VP8300 BT | Recommended Firmware | Processor E2E Key | SecureDeviceID | |
|---|---|---|---|---|---|
| Encrypted (recommended) | Non-Encrypted | ||||
| EVO Snap | IDV8-300P2 | V1.10.035 | IDT-KEYINJ-343 | EMV_VP8300_EVO | N/A |
| First Data Rapid Connect | IDV8-300P2 | V1.10.035 | TransArmor E2E Key | EMV_VP8300_RAPIDCONNECT_E2E | N/A |
| Heartland | IDV8-300AP2 | V1.10.035 | C12012 | EMV_VP8300_HEARTLAND | N/A |
| TSYS* | IDV8-300P2 | V1.10.035 | N/A | N/A | EMV_VP8300_TSYS |
| Processor | VP8300 BT | Recommended Firmware | Processor E2E Key | SecureDeviceID | |
|---|---|---|---|---|---|
| Encrypted (recommended) | Non-Encrypted | ||||
| EVO Snap | IDV8-300P2 | V1.10.035 | IDT-KEYINJ-343 | IDTVP8300_EVO_E2E | IDTVP8300HID |
| First Data Rapid Connect | IDV8-300P2 | V1.10.035 | TransArmor E2E Key | IDTVP8300_RAPIDCONNECT_E2E | IDTVP8300HID |
| Heartland | IDV8-300AP2 | V1.10.035 | C12012 | IDTVP8300_HEARTLAND_E2E | IDTVP8300HID |
| TSYS* | IDV8-300P2 | V1.10.035 | N/A | N/A | IDTVP8300HID |
*Encryption available via NETePay Hosted
