Home / Compatible Devices / ID Tech VP6800

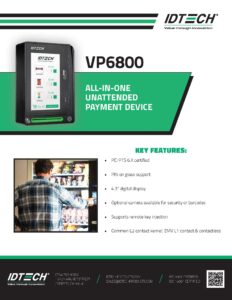

The VP6800, from ID Tech, is an all-in-one PCI 5.x SRED certified unattended payment device. It supports Chip and PIN (pin entry on glass display), Magnetic Stripe, Contactless Cards and Mobile Wallets ( i.e. Apple Pay, Google Pay, etc).
The VP6800 is available from select distributors today that is EMV-ready.
Here’s what you’ll need to order:
ID Tech VP6800 PIN pad (Part #’s vary per processor; see chart below)
USB Cable (80121214-001)
Power Supply (AC0005R-26)
Processor-Specific E2E Key (See chart below)
The VP6800 can be ordered directly from the vendors below.
Via NETePay Hosted
NETePay+
Tran Series+
TranCloud+
Via NETePay Hosted
NETePay
Tran Series
TranCloud
Via NETePay Hosted
NETePay
Tran Series
TranCloud
Via NETePay Hosted
NETePay
Tran Series
TranCloud
Via NETePay Hosted
NETePay
Tran Series
TranCloud
Via NETePay Hosted
NETePay
Tran Series
TranCloud
Via NETePay Hosted
NETePay
Tran Series
TranCloud
+ Requires NETePay Hosted
| VP6800 PIN pad | Recommended Firmware | Recommended Kernel Firmware | Encryption Key | SecureDeviceID | |
|---|---|---|---|---|---|
| Encrypted (recommended) | Non-Encrypted | ||||
| IDV68-10011 | VP6800FW_RT1050_V1.01.500.0104.0050.S | VP6800FW_K81_V1.02.151.0472.S | IDT-KEYINJ-287 | EMV_VP6800_DATACAP EMV_VP6800_DATACAP_BLUEFIN (PCI-Validated P2PE) | N/A |
| VP6800 PIN pad | Recommended Firmware | Recommended Kernel Firmware | Encryption Key | SecureDeviceID | |
|---|---|---|---|---|---|
| Encrypted (recommended) | Non-Encrypted | ||||
| IDV68-10011 | VP6800FW_RT1050_V1.01.500.0104.0050.S | VP6800FW_K81_V1.02.151.0472.S | IDT-KEYINJ-287 | IDTVP6800_DATACAP_E2E IDTVP6800_DATACAP_BLUEFIN (PCI-Validated P2PE) | N/A |
*Includes Datacap’s NETePay™, NETePay Hosted™, TranCloud™ and Tran™ Series products.
| Processor | VP6800 PIN pad | Recommended Firmware | Recommended Kernel Firmware | Encryption Key | SecureDeviceID | |
|---|---|---|---|---|---|---|
| Encrypted (recommended) | Non-Encrypted | |||||
| Fiserv Rapid Connect | IDV68-10011 | VP6800FW_RT1050_V1.01.500.0104.0050.S | VP6800FW_K81_V1.02.151.0472.S | TransArmor E2E Key | EMV_VP6800_RAPIDCONNECT_E2E | N/A |
| Chase | Requires NETePay Hosted. See NETePay Hosted chart above ↑ | |||||
| Processor | VP6800 PIN pad | Recommended Firmware | Recommended Kernel Firmware | Encryption Key | SecureDeviceID | |
|---|---|---|---|---|---|---|
| Encrypted (recommended) | Non-Encrypted | |||||
| Fiserv Rapid Connect | IDV68-10011 | VP6800FW_RT1050_V1.01.500.0104.0050.S | VP6800FW_K81_V1.02.151.0472.S | TransArmor E2E Key | IDTVP6800_RAPIDCONNECT_E2E | N/A |
| Chase | Requires NETePay Hosted. See NETePay Hosted chart above ↑ | |||||
